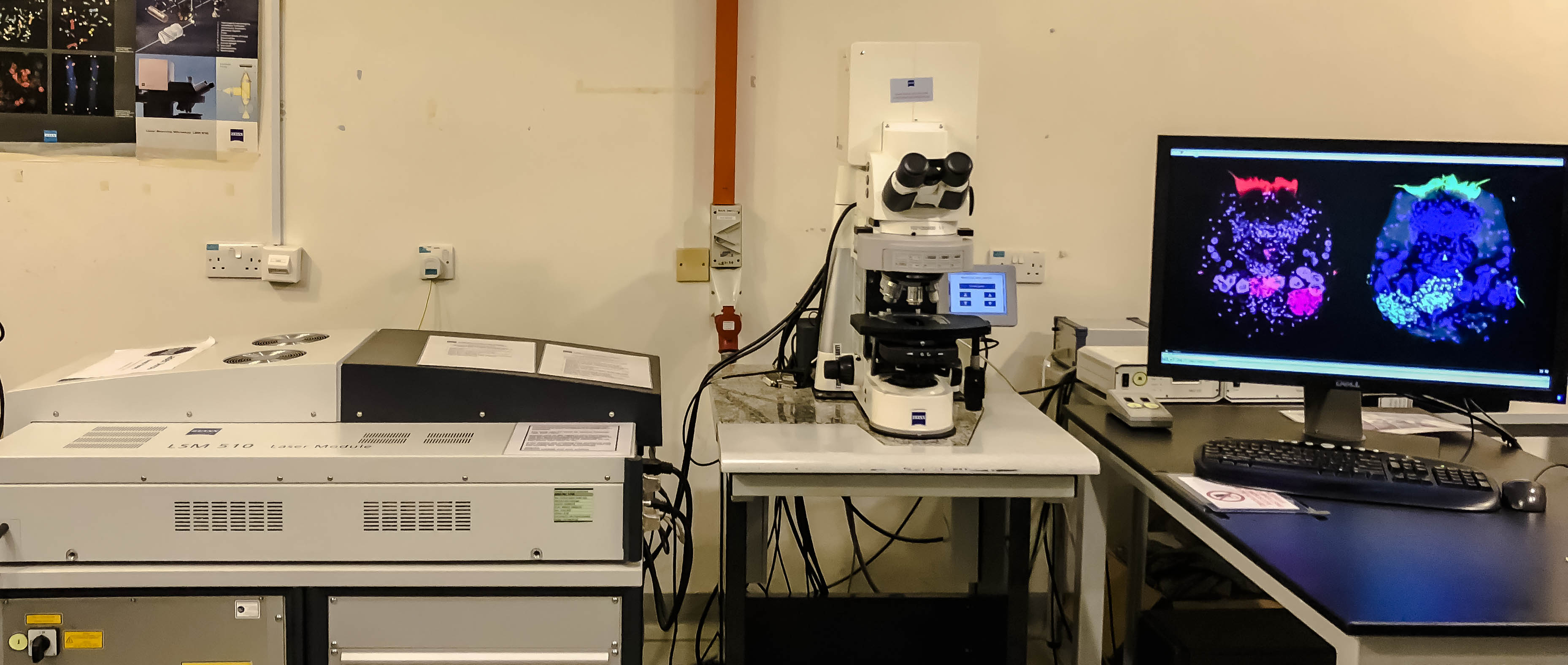

Zeiss LSM510 Upright


Zeiss LSM510 Upright

  Features:

  • Lasers: 458, 488, 514, 543, 633nm
  • Multidimensional imaging (XYZT)
  • 3 PMT detectors
  • 1 Transmitted Light Detector
  • LSM5 Imager Software
  • Other Imaging techniques: FRET

Location: #02-20


Objective lens Magnification/N.A Working Distance(mm) Immersion Medium DIC
EC Plan-NEOFLUAR 10x/0.3 5.5 Dry No
Plan-APOCHROMAT 20x/0.80 0.55 Dry No
ACHROPLAN 40x/0.80 3.6 Water No
EC Plan-NEOFLUAR 40x/1.3 0.21 Oil Yes
Plan-APOCHROMAT 63x/1.4 0.19 Oil Yes

TLL Staff who would like to receive training on this system, please sign up through Microscopy Training Form.

External users who are interested in this system, please contact Yang Fan
