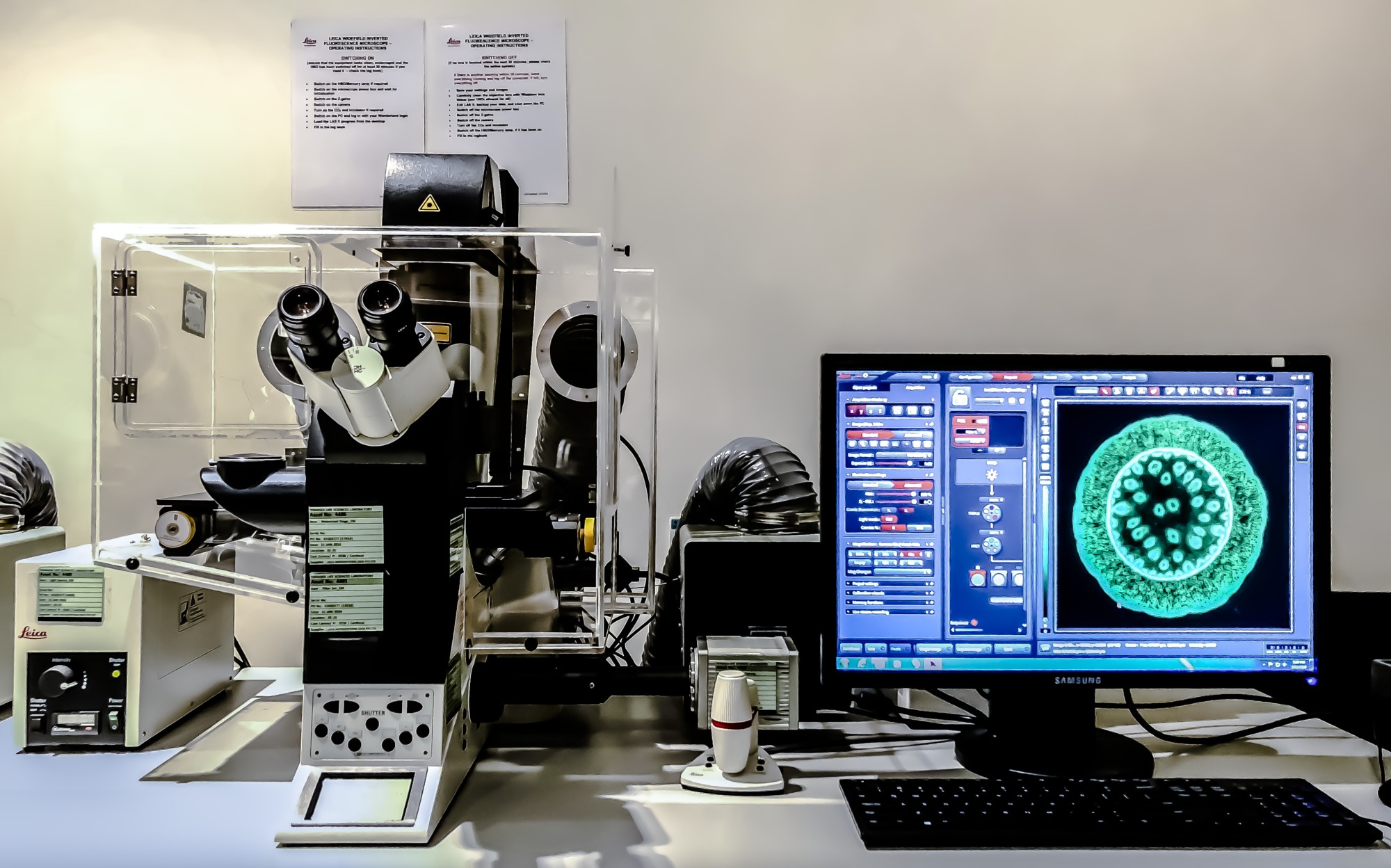

Leica DMI6000 Widefield Inverted


Leica DMI6000 Widefield Inverted

  Features:

  • Multidimensional Imaging XYT
  • Automated Imaging and Tilescan
  • High Precision Galvo Z stage
  • 2k x 2k Hamamatsu ORCA-Flash 4.0 Camera
  • Fast Filter Wheel for High speed Imaging
  • Incubator for temperature modulation
  • Metamorph Software v7.10
  • LASx Software equipped with LASx
    • Navigator & Focus Mapping Feature (NEW)

Location: #02-25

Objective lens Magnification/N.A Working Distance(mm) Immersion Medium DIC
HC PL APO 10x/0.4 27.4 Dry Yes
HC PL APO 20x/0.7 0.26 - 0.17 IMM Yes
HCX PL APO 40x/1.25-0.75 0.22 Oil Yes
HCX PL APO 63x/1.40-0.60 0.14 Oil Yes
HCX PL APO 100x/1.4 0.09 Oil Yes

Filter Set Excitation Dichroic Emission Suitable Dye
A 360/40 400 425LP DAPI
I3 470 510 515LP GFP/FITC
Y3ET 545/30 565 610/75 Cy3
Chroma 39007 620/50 655 690/50 Cy5
TRI 420/30 415 465/20 DAPI
495/15 510 530/30 GFP/FITC
570/20 590 640/40 TRITC
Analysator       DIC

TLL Staff who would like to receive training on this system, please sign up through Microscopy Training Form.

External users who are interested in this system, please contact Yang Fan
